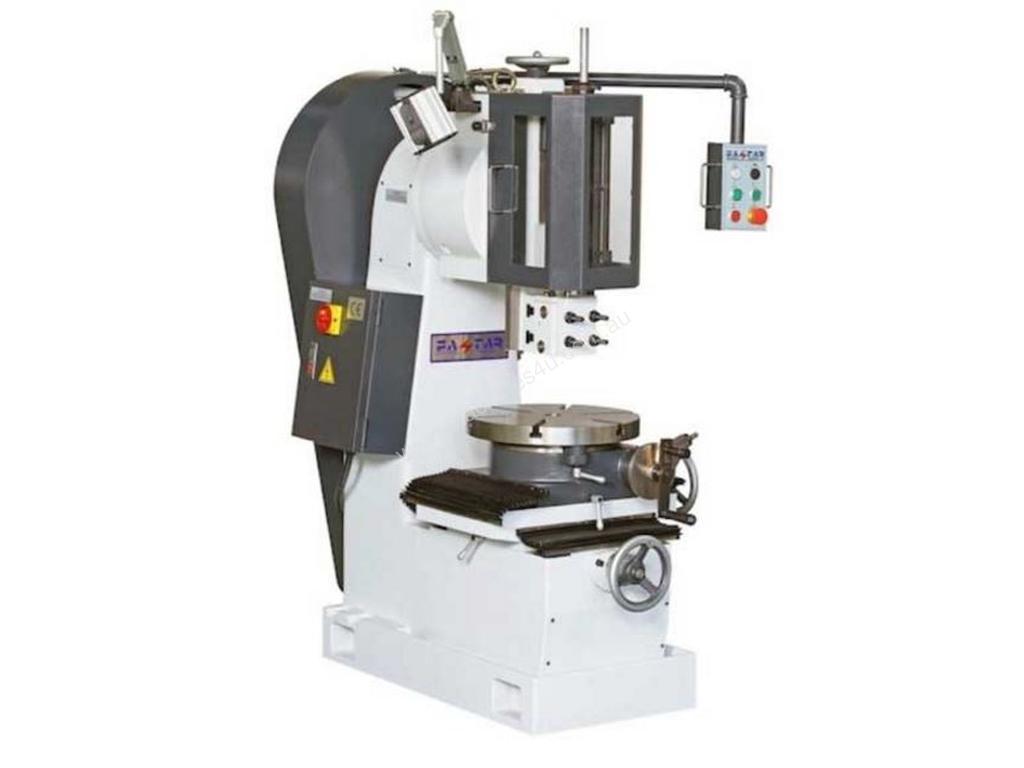

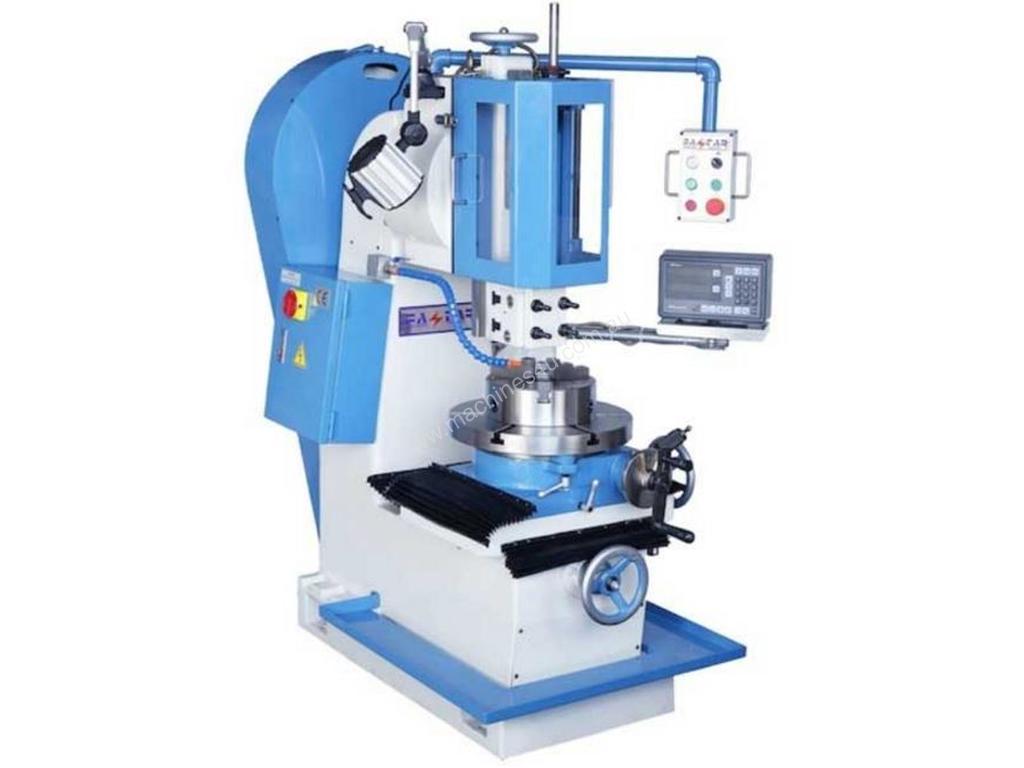

TOPTEC TS SLOTTER
REGENCY PARK, SA -
-
-
-
+1
TOPTEC TS SLOTTER : Ask for Price
High Quality Slotter
Slotting machine made in Taiwan.
Ram slide ways are hardened and ground
Head can swivel +- 30 degrees
Built in lubrication system to prevent wear
Rotary table (*opt. for TS-125K/AT)
TS-AT Series with mechanical auto tool backing off device for prolonged tool life
Slotter Options

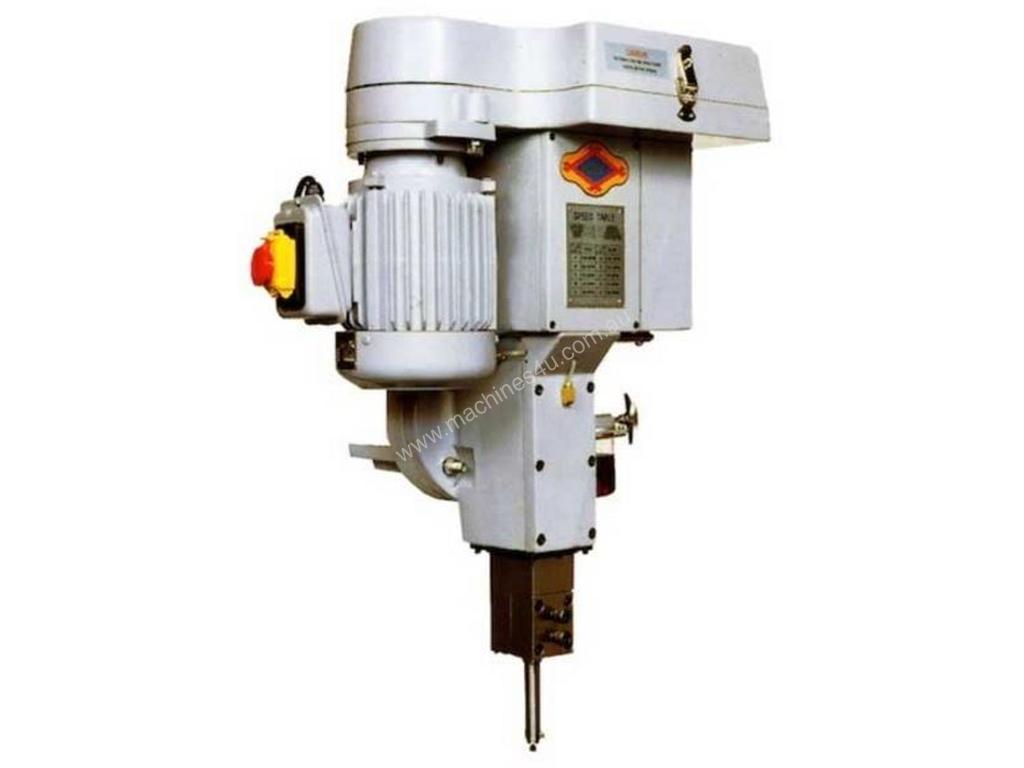

Mechanical auto tool back off device (TS-K type)
Digital readout for slotter
CE standard
Slotting bar
3 jaws scroll chuck
Clamping kit sets
Halogen work light
Coolant pump and tray
MODEL TS-125K / AT TS-200K / TA TS-300K / AT TS-350K / AT
Ratio of indexing — 1:80 1:80 1:80
Stroke 125mm 200mm 300mm 350mm
Stroke per min. (L) 30-47-69-98-140 26-31-36-46 22-26-31-39 22-26-31-39
Stroke per min. (H) 53-62-73-93 44-52-61-78 44-52-61-78
Swivel angle of head +- 30 deg +- 30 deg +- 30 deg +- 30 deg
Work Table 815x240mm dia. 400mm dia. 560mm dia. 560mm
Main Spindle Motor 3/4 HP 2 HP 5 HP 5 HP
Weight 650 kgs 900 kgs 1550 kgs 2000 kgs
