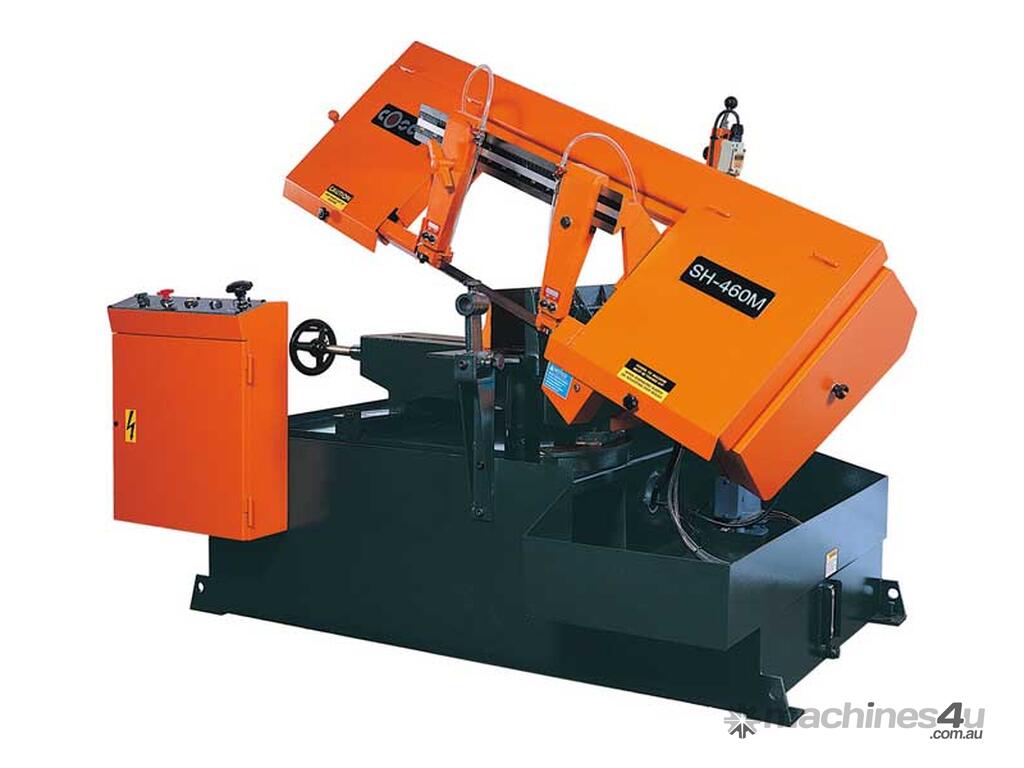

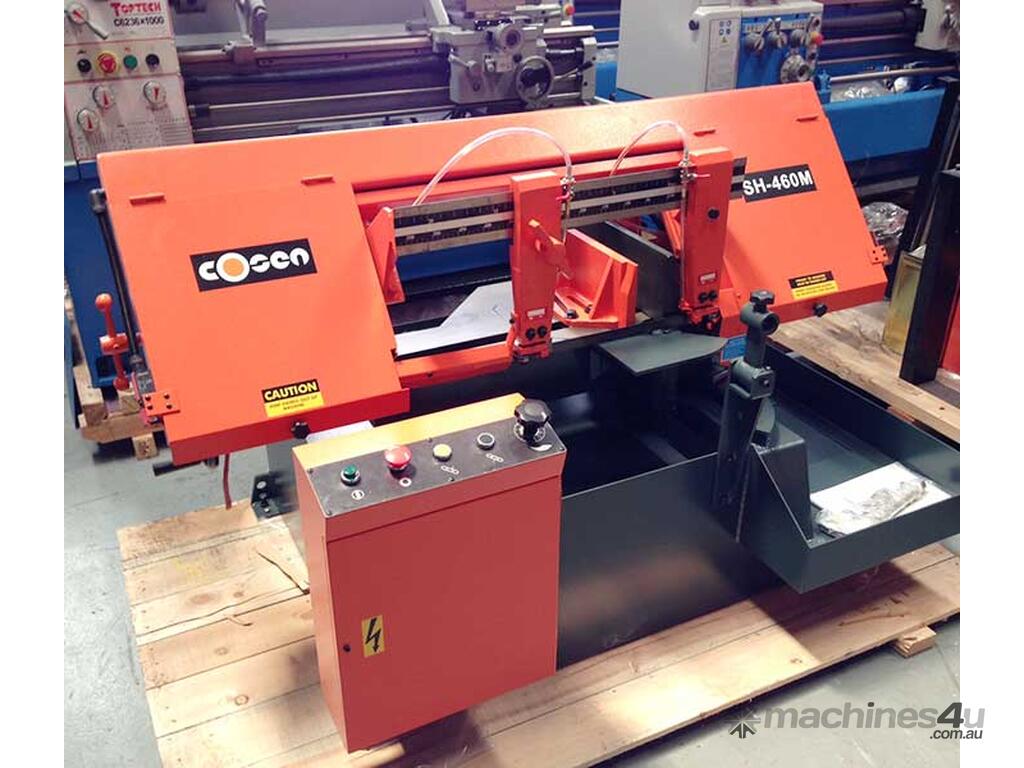

SH-460M SEMI-AUTOMATIC MITRE BANDSAW

REGENCY PARK, SA

High-Quality Semi-Automatic Hydraulic Swivel Head Miter Bandsaw

SH-460M has a heavy-duty swivel frame and bed mitre design with a capacity of 250mm round. Key features included in this robust machine allow for the use in steel fabrication workshops of all sizes. Specifically designed bed and swivel allow users to easily and accurately set angles.

- Capacity 460 mm wide
- Semi-automatic. Automatic lift after cut
- Heavy-duty design.
- Heavy-duty swivel frame

MODEL SH-460M
Cutting capacity 90° 250; 230x460mm
Cutting capacity 45° 230; 230x230mm
Cutting capacity 60° 110; 110x230mm
Main motor 1.5 kW
Angular cut 0~60
Blade size 3505x27x0.9mm
Weight 650 kg

Structure

Oversized hydraulic cylinder with precision ground hinge support
Specially designed heavy-duty cast iron swivel center for miter cuts from 90 to 45 degree
Large rugged base with built-in coolant & hydraulic system

Blade Drive

2 hp motor, heavy-duty reducer, & variable step drive assembly
4-speed transmission with the best worm gear and shaft

Blade Guidance & Lubrication System

Carbide blade guides with roller bearings
Two additional bearings to support blade from the top
Rigid guide arms mounted on extra wide precision ground dovetail slide
Integral coolant system
Blade brush

Control & Automation

Control panel conveniently located in front of machine
Down feed rate & cutting pressure control
Built-in hydraulic units offering convenient sawhead lift after cut-off
Work height selector

Material Feeding & Clamping

Cast iron vises
Secure clamping via dependable manual lead screw system
Anti-slip hand wheel

Safety

Conduits protection measure
Orange alert safety design

Standard Accessories

Easy blade change with front access at waist level
Bi-metal saw blade
Tool box, leveling pads, and an additional wire brush
Operation & parts manual

*All designs and specifications are subject to change without notice or obligation
