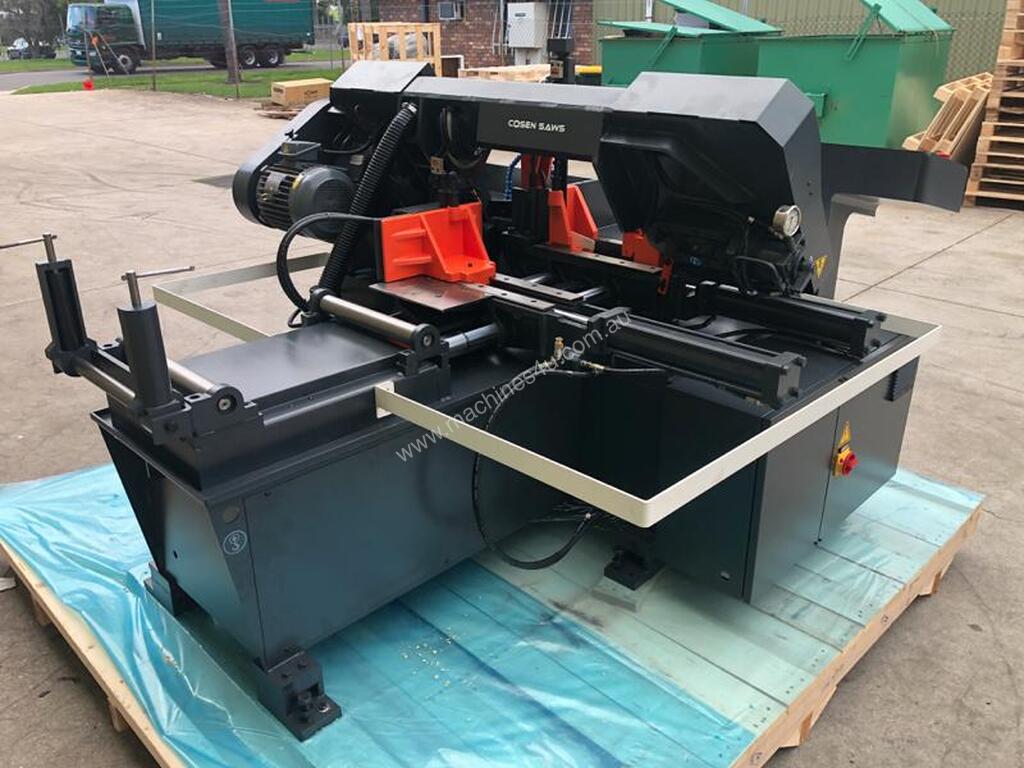

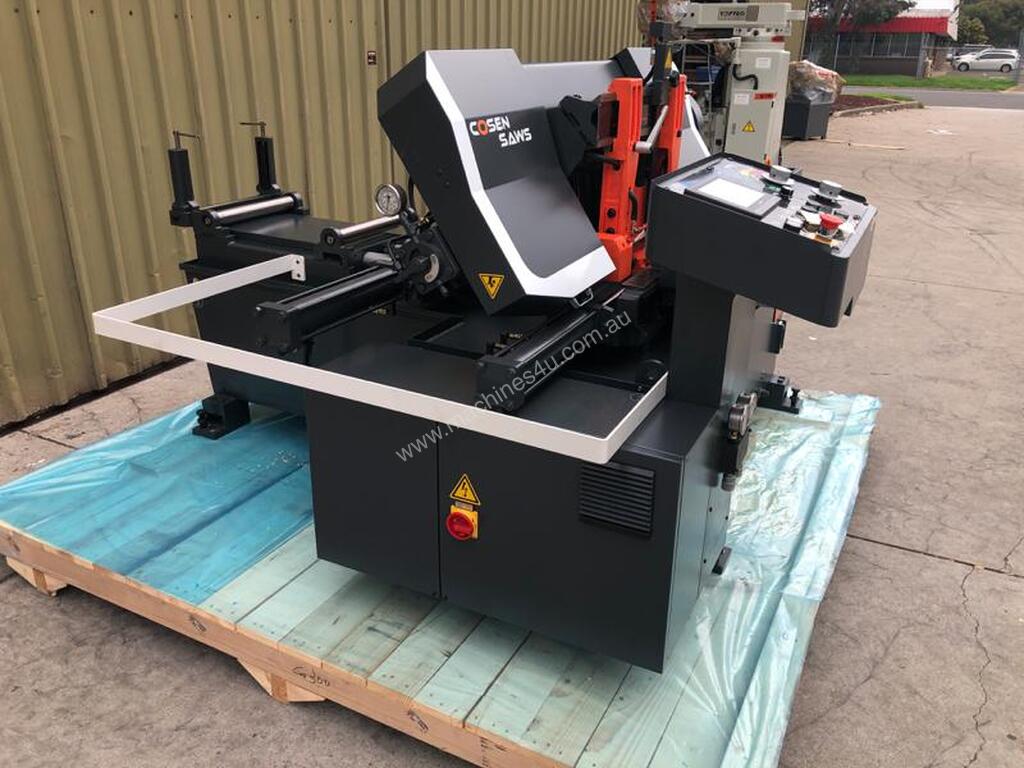

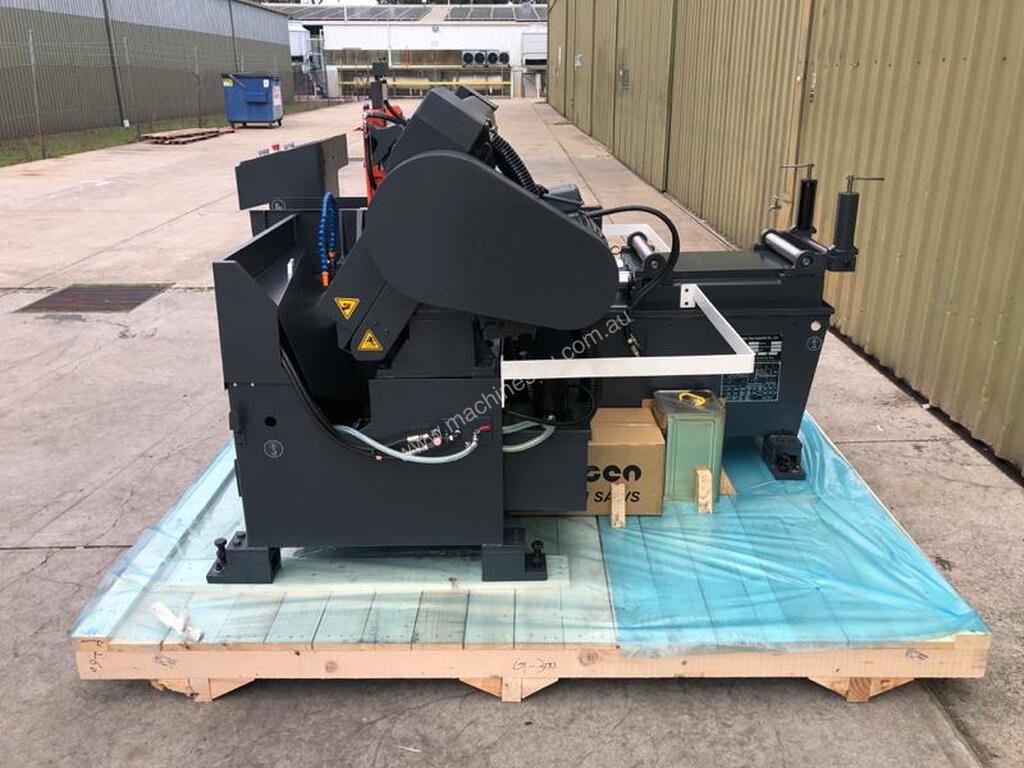

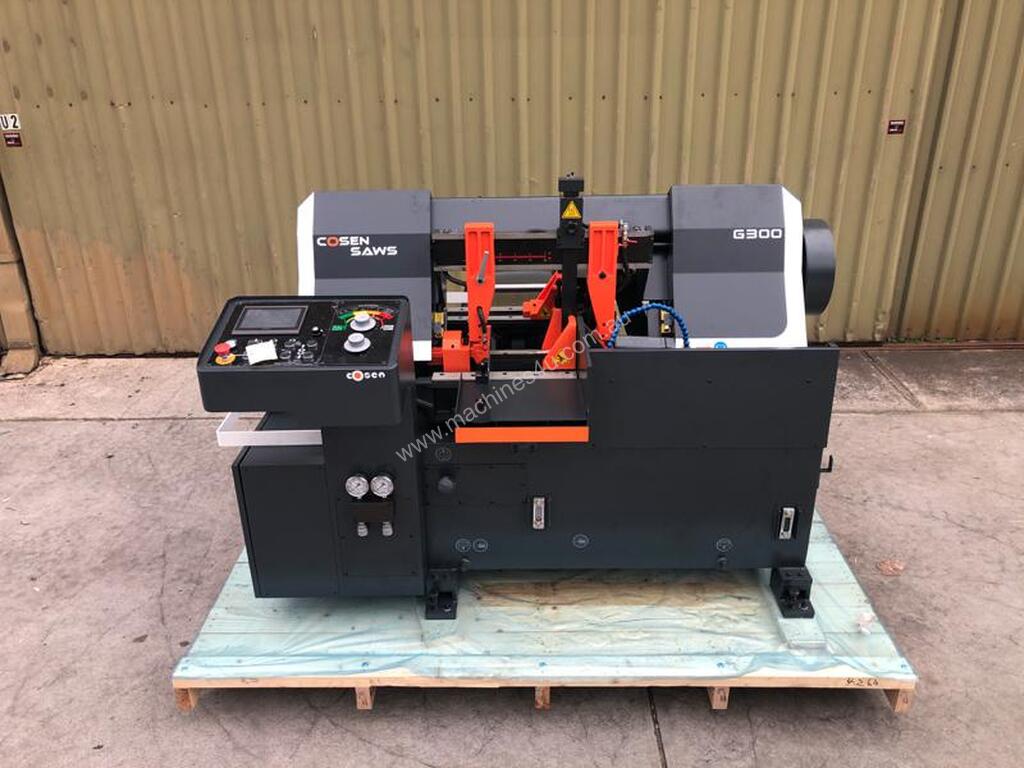

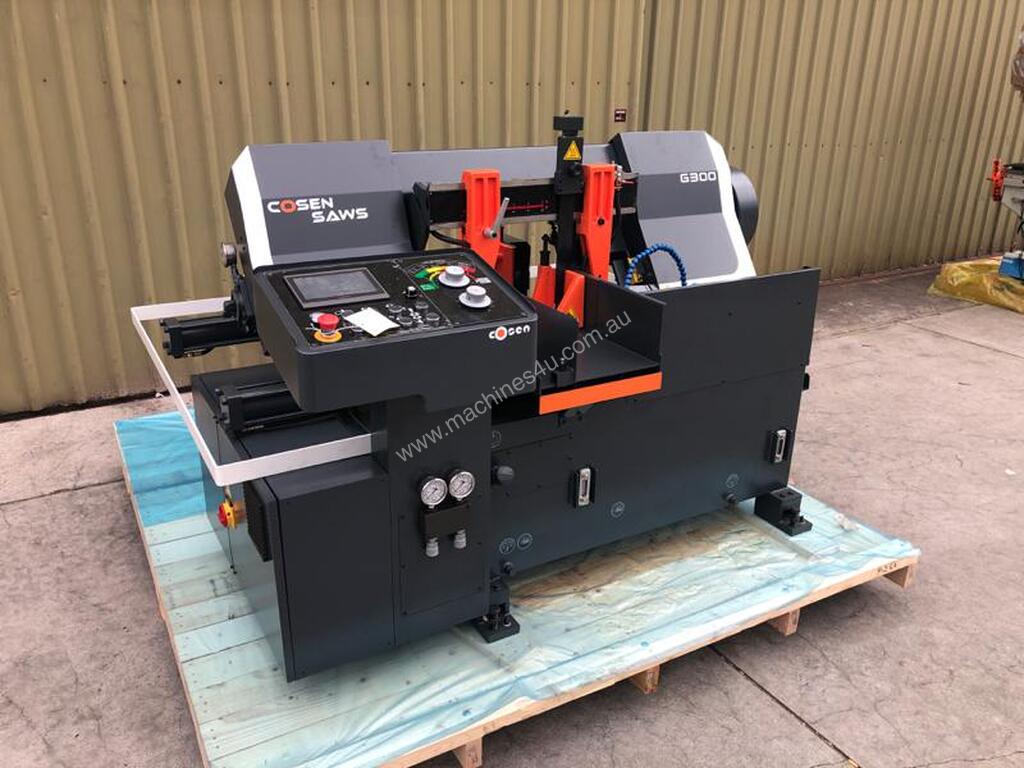

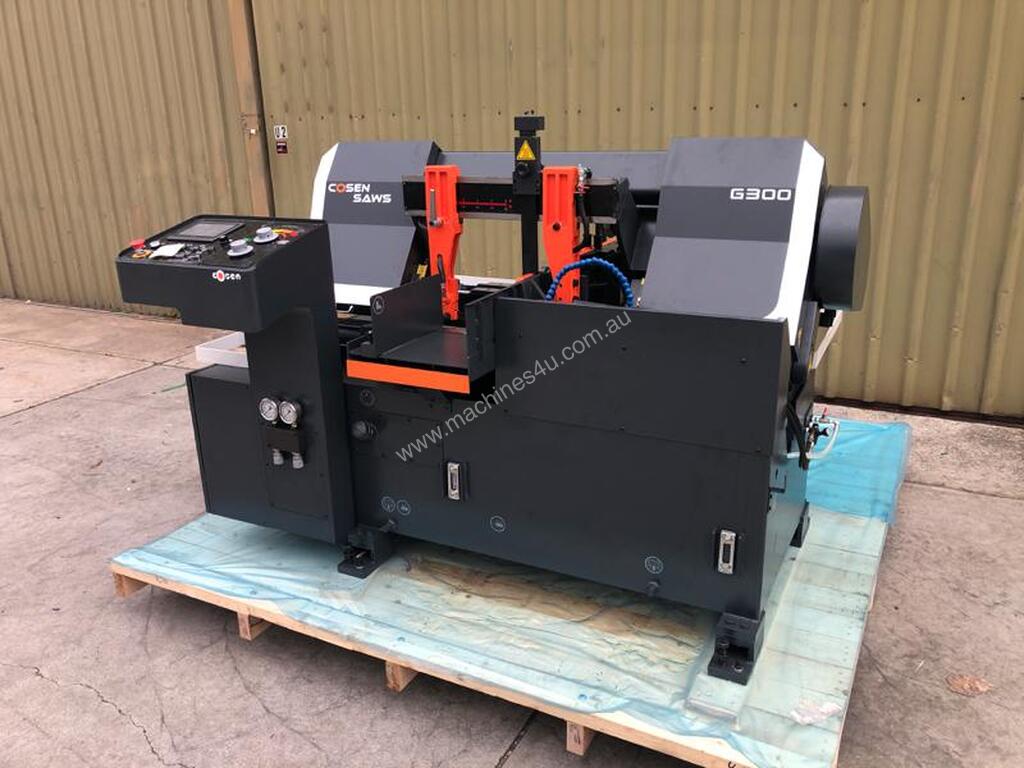

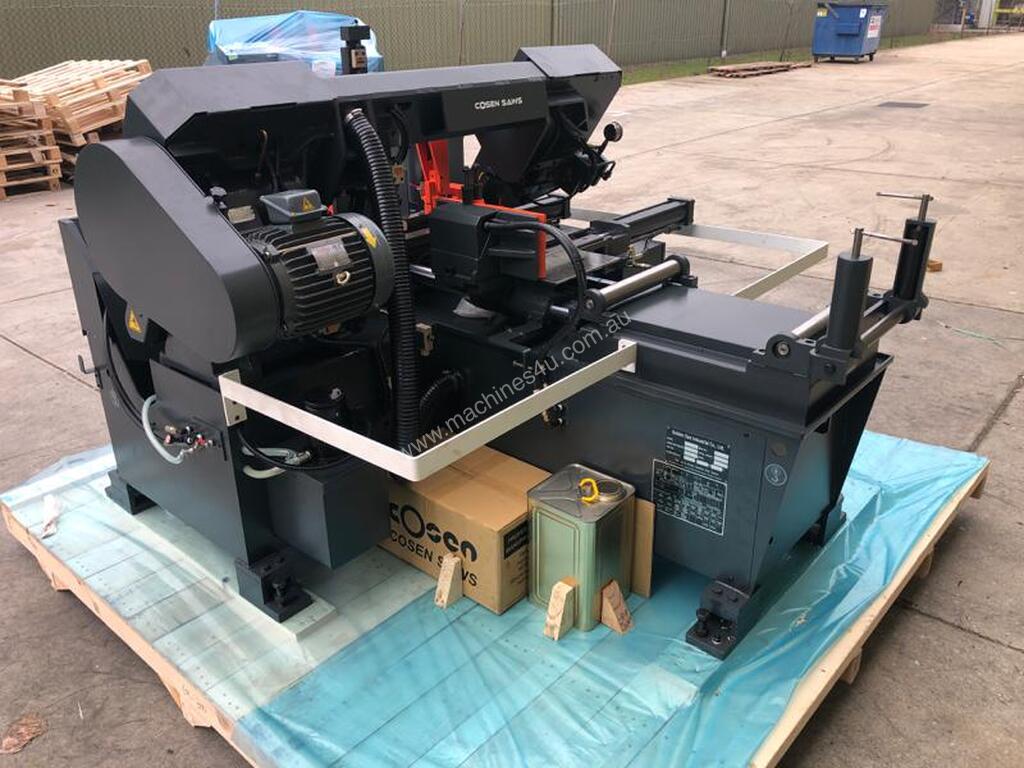

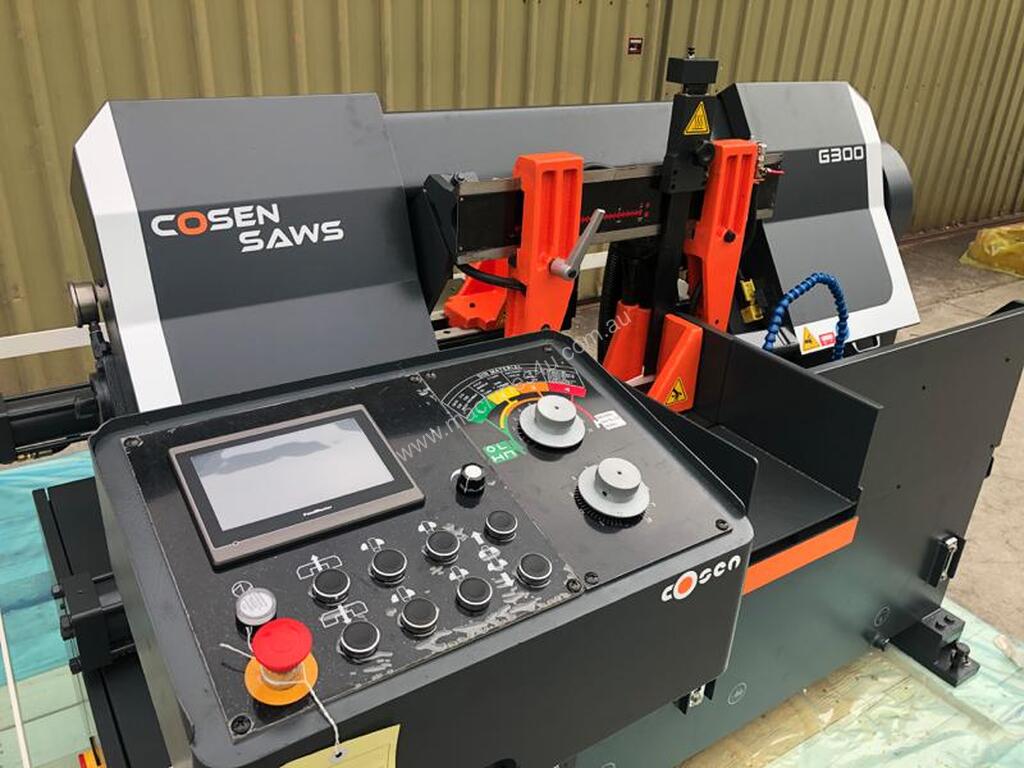

COSEN G300 'Euro Edition' CNC Automatic Bandsaw 300mm

REGENCY PARK, SA

High Spec Euro Edition

The Cosen G300 is a rigid high production machine which incorporates a massive base, sturdy saw frame, with an extremely heavy-duty gearbox, a 5 HP (3.75 kW) drive motor, a user-friendly programmable control, and a modern new look!

STANDARD:

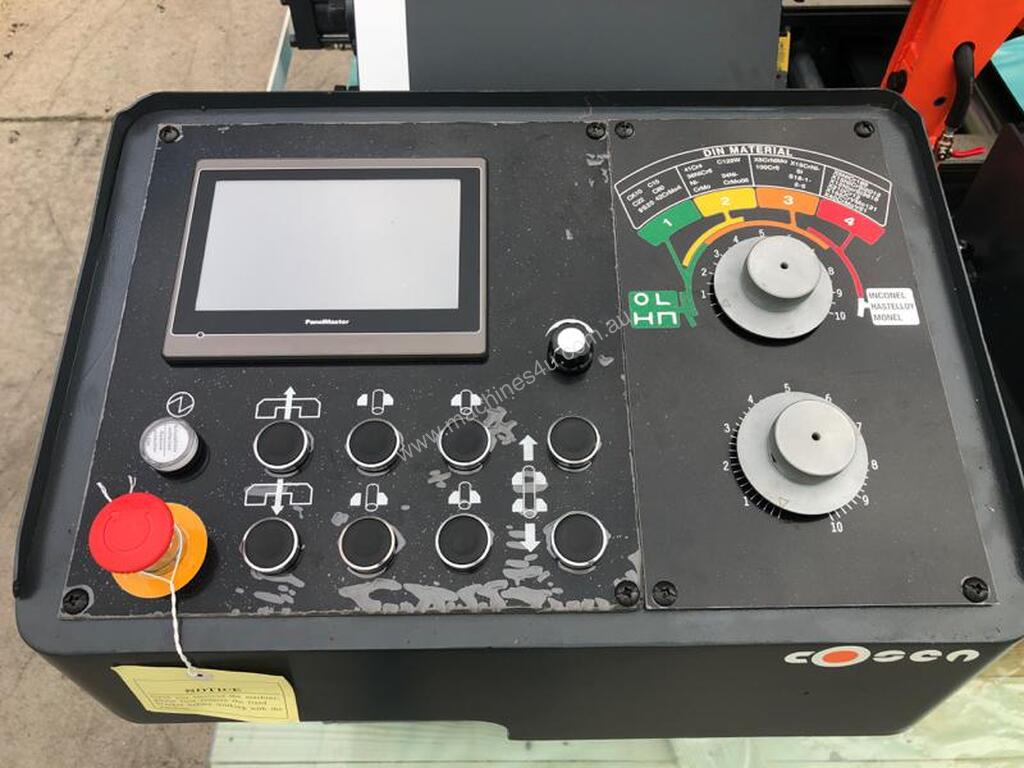

- 5.7” HMI Touch Screen & Mitsubishi PLC Controller
- 100 individual jobs can be programmed and stored
- Automatic kerf compensation
- “Save-a-Blade” function
- Rapid troubleshooting via error feedback system
- Double retracting vises
- Scrape-free vise plates
- Full stroke hydraulic cylinder
- Split front vise
- Inverter-controlled infinitely variable blade speed
- Automatic hydraulic blade tension device
- Hydraulic Chip Conveyor
- Vibration Damper
- Blade Height Decoder
- Vise Pressure Regulator

OPTIONAL:
- Hydraulic Top Clamp
- Blade Deviation Detector
- 2M Heavy Duty Roller Table

SPECIFICATIONS:
COSEN G300
- Capacity Round 300 mm
- Capacity Square 300 mm
- Capacity Rectangle (HxW) 300 x 340 mm
- Blade Speed 20-100 m/min (66-330 fpm)
- Blade Size 3820mm x 34mm x 1,1mm
- Blade Tension Hydraulic
- Blade Motor 5 HP (3.75kW)
- Hydraulic Motor 1 HP (0.75kW)
- Coolant Motor 1/8HP (0.1kW)
- Work bed Height 660 mm
- Gross Weight 1800 kgs
- Floor Space (W x L x H) 2010mm x 1890mm x 1500mm
?Design and specifications are subject to change without notice & obligation.
?Machines may be shown with some options.

Call for best price and delivery
